Aviation intercom 2 way

THE BASICS
This light portable compact is the only 2 Ways intercom very easy to use Designed for Mono and Stereo headsets it allows simple and powerful communications you can count on. You can use any combination of headset with same impedance. The compact design Measuring 11 cm x 8,8 cm x H 3,8 cm and light weight 250 gr. makes it easy to carry in your flight or headset bag. You can take it with you all the time just in case you take an airplane not equipped.

FEATURES AND BENEFITS

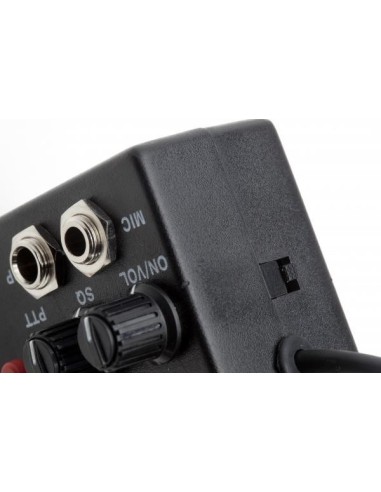

Constructed of strong ABS plastic with round corners, the AVIATION INTERCOM is built to withstand the tough life of a portable intercom. Inside, an electronic circuit board confer high reliability. A logical layout of the front panel make you understand how it works at the first glance. The easily readable prints of the controls reinforce the easiness. From bottom to top the controls are grouped conveniently, a line with female jacks for Pilot or Co-pilot, then a line of switches one stamped ON OFF this is the On / Off Volume switch then the (mute) Squelch button (VOX activation). On the right of the squelch switch a push to talk button in red (PTT).

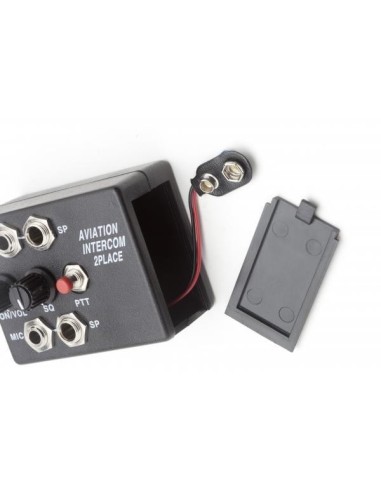

The battery compartment with a sliding door, accepts a 9 v battery, the space is calculated so the battery cannot move when closed.

THE FUNCTIONNING DETAILS

When everybody is on stand by and the voice activation (VOX) is not active (SQUELCH at the sensitivity level) or very low.
The voice-activated squelch circuit (VOX) adjusts to noise environment or can be set for a continuous open-mike condition.
An integrated circuit allows you to use mono or stereo headsets. The convenient push-to-talk button for the pilot on the front panel. The “fail-safe” feature gives a direct connection to the aircraft radio in case the power supply to the intercom is disrupted.
AVIATION INTERCOM is a simple but powerful, full featured, mono-stereo intercom.

MAIN FEATURES

• On/Off volume switch.
• Mute switch
• Push to Talk direct on the panel
• Fail-Safe capability.
• Powered by one 9V batteries (20 to 30 hours autonomy depending noise and usage conditions).
• Measures 71 x 59 x 35 mm

ELECTRICAL

• Voltage required: Battery: 9-Volt 6LR61 9v - 6AM6 9v
• Current consumption: 22 mA typical
• Audio output: 250 mW
• Mic. source impedance: 680 ohms
• Mic source voltage: 8 ~ 9.6 V typical

CONTROLS/FEATURES

• Voice activated (VOX)
• Fail safe
• Volume control with On / Off switch
• Squelch (Mute) control

MECHANICAL

• Rugged compact design
• Number of positions: 2
• Works with Mono and Stereo Headsets
• Works with mixed Headsets of same impedance
• Easy to open sliding battery cover on side
• Dimensions: 71 x 59 x 35 mm
• Weight: 202 gr. Alone and 259 gr. with the 9 v. battery (47 gr.) inserted.
• Gold Plated contacts
