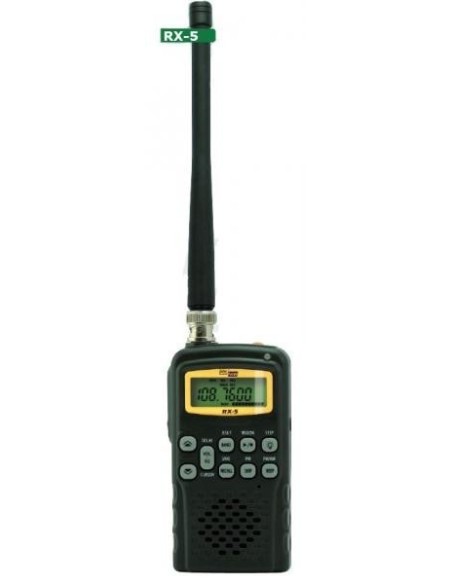

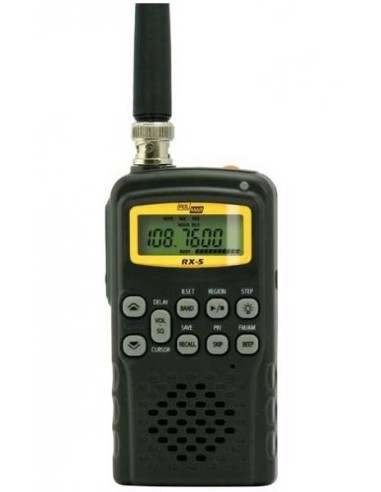

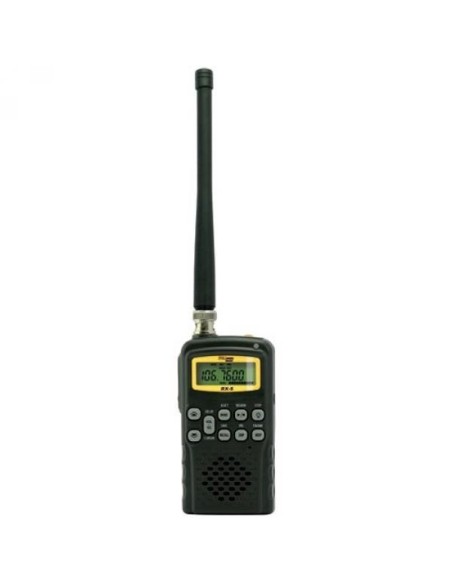

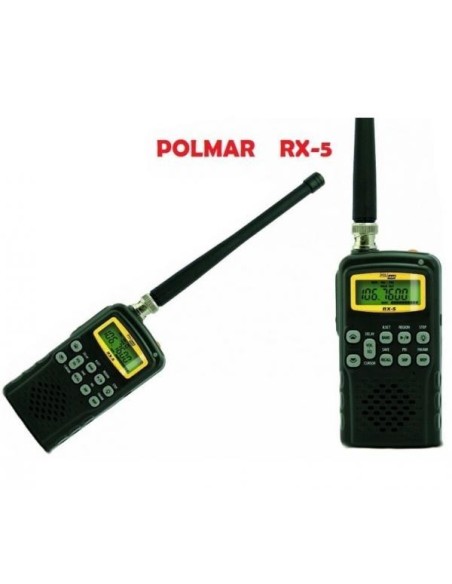

Aircom Scanner Receiver POLMAR RX-5 (DISCONTINUED)

The POLMAR RX-5 is the replacement for the popular radio receiver-Scanner aviation band Maycom AR-108. It is at the same price € 69 and offers more features




 POLMAR MULTIBAND RECEIVER RX-5 With Air Band in 8.33 MHz in replacement of the MAYCOM Ar-108



AS FOR AR-108 FR-100 THE MANUFACTURE OF THIS PRODUCT HAS BEEN STOPPED.

Currently similar replacement products are TSC 100-RA or UNIDEN UBC EZI 33XLT





ENGLISH DOCUMENTATION IS DELIVERED WITH THE PRODUCT FOR FRENCH DOCUMENTATION REPORT TO THE FRENCH LANGUAGE PAGE TO RESPECT ORDER PROCEDURE.



Portable Receiver Scanner small in size, it is in more efficient, the replacement for the MAYCOM AR-108 discontinued and MAYCOM FR-100 also discontinued by MAYCOM. It receives specific frequency segments between 25 and 174 MHz, AM and FM and the Air band in pitch 8,33 MHz.




PORTABLE SCANNER RECEIVER

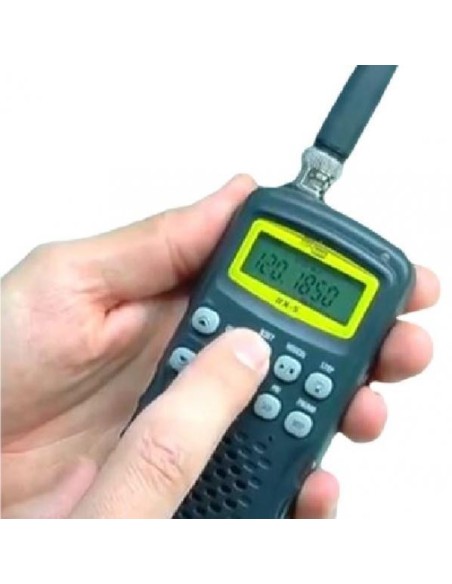

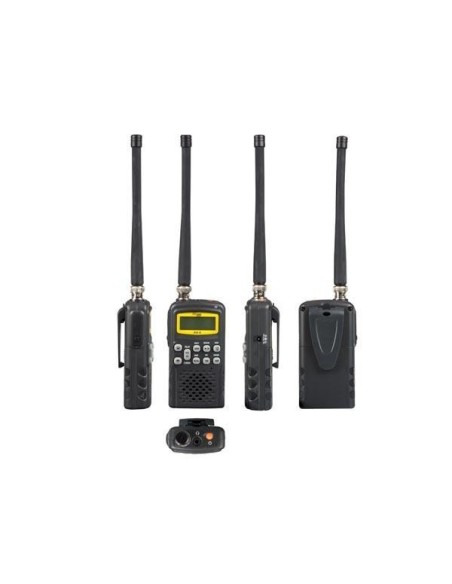

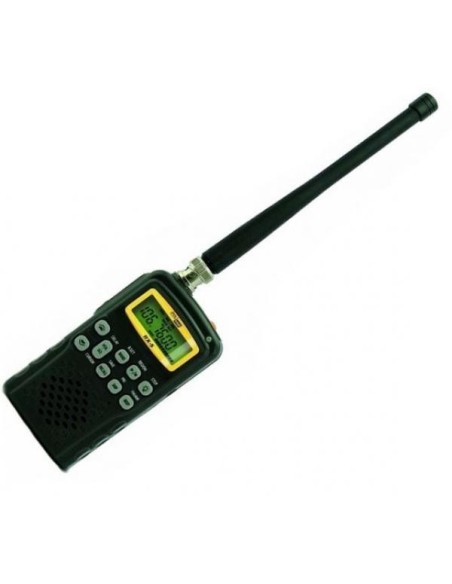

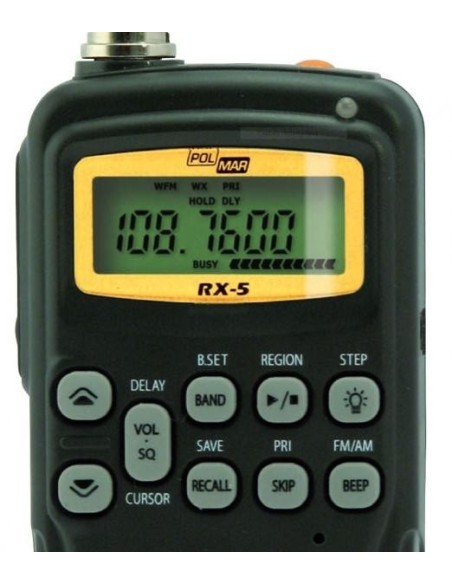

The RX-5 is a portable lightweight and relatively small. It slips into a pocket without deforming it. The reception is not on continuous frequencies (this is also a characteristic of many other portable scanners) but is limited to specific segments and are distinguished by the type of radio traffic.

Serving the CB band and its surroundings (25 ~ 29.69 MHz) bands used by radio amateurs and PMR networks also called Walkie-Talkie (66 ~ 88 and 144 ~ 174 MHz), civil aeronautical band (108 ~ 136 MHz pitch of 8.33 Mhz), one that concerns us the most and that will allow you to capture the aircraft and control towers, and finally broadcasting frequencies WFM traditional (classical FM radio).

There are a total of 200 memory locations and five priority channels for direct access to the frequency management. Search options allow you to explore and scan between choosen bands limits or the recorded memories (frequencies you have chosen and which you prefer) with a speed of 25 frequencies per second sweep. To monitor a priority channel interval, this speed allows a scan in 2 seconds. Other features: squelch and disable function keys.
Performance and usage:

The RX-5 model Polmar differs little from other scanners, but it is especially for those who have not much experience in the use of this type of receptor and want to focus on the main VHF bands. This leads to a reduction in the number of parameters under control of the user, it is in fact a simplified application of the device. It should be noted, however, that this feature has been, overall a benefit based on the preferences of the user.


How POLMAR RX-5 he compares to the AR-108 discontinued.



First advantage respect of the new space in aeronautics or 8.33 instead of 0.25. The spacing 0.25 is understood well preserved.


Comparatif RX-5 AR-108

C O M P A R A T I F

POLMAR RX-5

MAYCOM AR-108



Sensibilité = Sensitivity



Notation Stars


1 = Unsatisfactory,
2 = Fair,
3 = Satisfactory,
4 = Good,
5 = Excellent

Sélectivité = Sélectivity



Dynamique = Dynamic



Réponse parasite =Parasite reply



Audio (acoustic)



Fonction sur le signal  = Function on the signal

[Parametre non applicable sur ce  recepteur]

[Parameter not applicable to this receiver]

Fonction de Contrôle = Control Function



Facilité d'utilisation = Ease of use





Polmar RX-5 is a portable receiver scanning of five bands in the low and high frequency VHF ranging between 25 and 174 MHz. The scanner is designed to receive two simultaneous communications bidirectional radio transmitters in European standard frequency ranges and in systems with AM channel spacing and narrowband FM modulation.


Band of the Air Worldwide between 108 and 136 MHz may be well received in the new 8.33 kHz channel system and of course with the system standard 25 kHz.

- The "squelch" (noise suppression) is adjustable.
- 200 memory channels with five priority channels with the possibility of immediate recall
- Scan the channels.
- Scan memory for quick selection of favorite channel.
- Lock key.

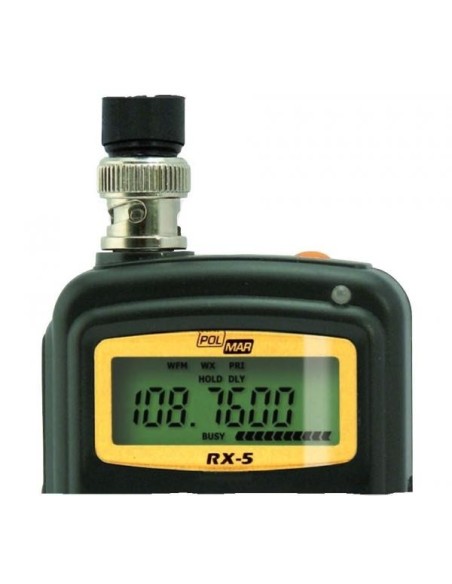

- A BNC antenna jack enables connection type 50 Ohm

- Type: plug-in antenna allows connection of external antennas or antenna cables improving reception range.
- Powered by 3 AA batteries (alkaline or rechargeable Ni-MH) or DC (not supplied).
- Headphones Type Mono or external speaker with 3.5 mm can be connected.

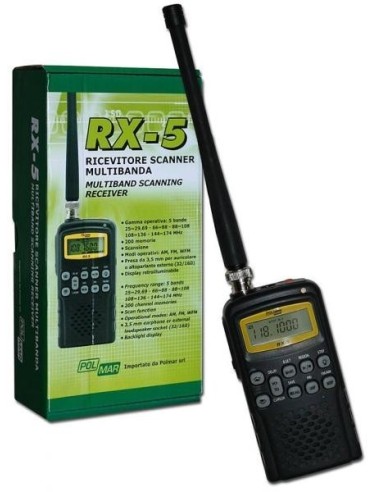

Supplied with: antenna and manual in English and Italian as a standard and French (translated by our care) (available end of April)



Technical Specifications
Memory channels 200 channels
Frequency Ranges WFM: 87.5 – 108 MHz
VHF: 144 – 174 MHz
VLB: 66 – 88 MHz
Air band: 108 – 136 MHz
CB: 25 – 29,69 MHz
Typical Receiver Sensitivity at 12dB SINAD 87.5000 – 88 MHz (WFM): 0.9 μV
107,950 MHz (WFM): 0.9 μV
108.050MHz (AM): 0.4 μV
135.500MHz (AM): 0.4 μV
144.020MHz (FM): 0.3 μV>
173.450MHz (FM): 0.3 μV
27.405MHz (FM): 0.9 μV
Scan rate 25 channels per second (Normal)
Search rate 25 steps per second (Normal)
Priority sampling interval 2 seconds
IF Rejection 65dB
1st IF 51.750MHz
2nd IF 450KHz
Internal audio output 1 Watt a/at 16 ohm
Internal speaker dynamic diameter 40mm
16 ohms
DC Current at closed squelch 35 mA
Current drain with full audio output 250 mA max
Battery power supply Alcaline AA x 3 o Mi-MH AA x 3
Antenna socket 50 ohm – BNC connector
External headphone socket 3,5 mm mono
External DC power supply 8…..18 Vcc, center +
Dimension 106 x 56 x 27 mm




By ordering this product you can get a FREE download of the French manual.

Otherwise product is delivered with a manual in english german and Italian.



This is an Aerodiscount EXCLUSIVITY


SO CARE :

You must order The FRENCH USER MANUAL along with your product  : It's for Free

by visiting the following link:


User manual for The POLMAR RX-5

PLEASE CLICK ON THE IMAGE



The manual is not downloadable alone ... Hi, Hi ...

Sorry for those who bought elsewhere.

 Aerodiscount provided information that you will not find elsewhere

and respects the French legislation ...
