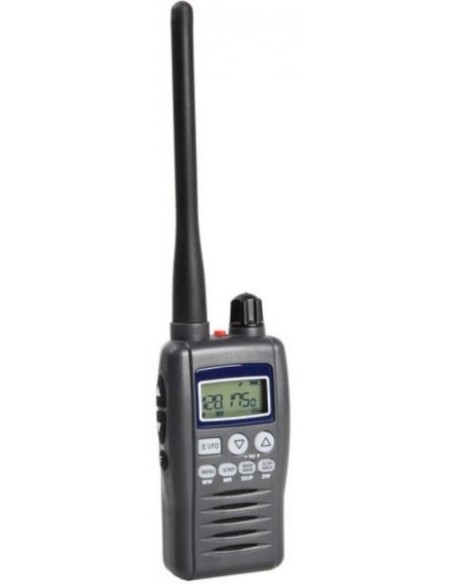

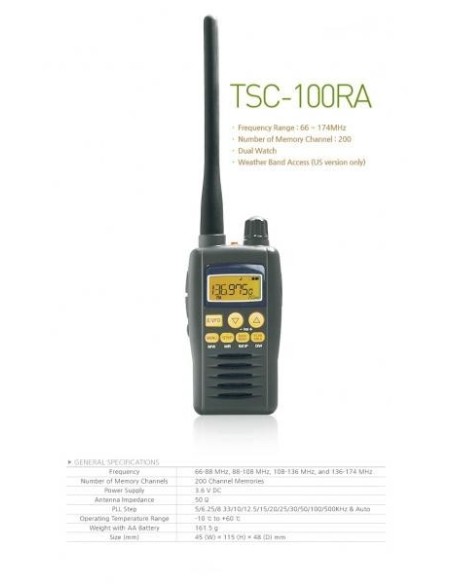

Multi band Scanner Receiver TSC 100-RA Airband (108 - 136 MHz en pas 8,33)
The TSC 100 RA is an other alternative of the pocket popular radio Aviation Scanner Receivers Maycom AR-108 and Polmar RX5. this an entry level scanner rechargeable receiver designed to appeal to the air band enthusiasts (108 - 136 MHz) and other HAM radio hobbyists. Focused on Air band, VHF band, VHF Low Band (66-88MHz) and WFM Broadcast band (weather channel only in the US), this scanning receiver prides itself with exceptionally high receive sensitivity combined with clear and crisp audio.
TSC 100 RA MULTIBAND and MUltistep RECEIVER With Air Band in 8.33 MHz in replacement of the MAYCOM Ar-108 and POLMAR RX5
ENGLISH DOCUMENTATION IS DELIVERED WITH THE PRODUCT FOR FRENCH DOCUMENTATION REPORT TO THE FRENCH LANGUAGE PAGE TO RESPECT ORDER PROCEDURE. French translation is now available after our translation

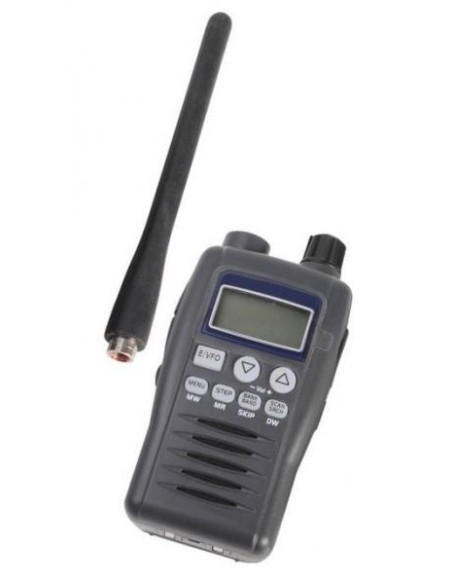

PORTABLE SCANNER RECEIVER
SCANNER 200 CANAUX TTI TSC 100 RA AM NFM WFM 66MHz à 87.5 108Mhz à 135.995Mhz is a rechargeable (if you choose this option when placing your order) scanner receiver designed to be a very good alternative of the MAYCOM AR-108 , Maycom FR 100 and POLMAR RX5 that are now discontinued It will appeal to the air band enthusiasts and other HAM radio hobbyists. It offers Air band, VHF band, VHF Low Band (66-88MHz) and WFM Broadcast band (Weather channels only available in the US), this scanning receiver will offer you an exceptionally high receive sensitivity and a clear and crisp audio.
Simplified user friendly functions, along with clear and easy to follow instructions are going to make this receiver a hit with novice scanner enthusiasts.

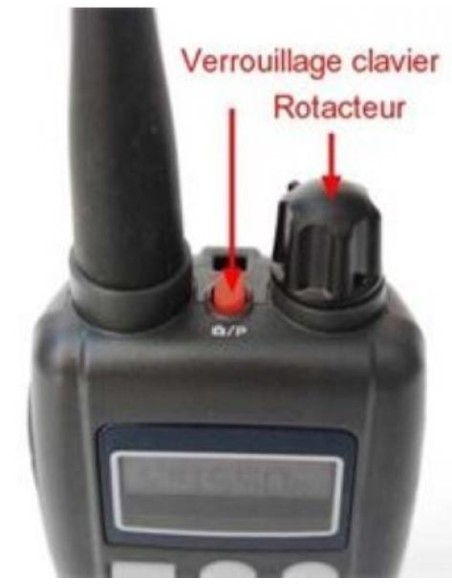

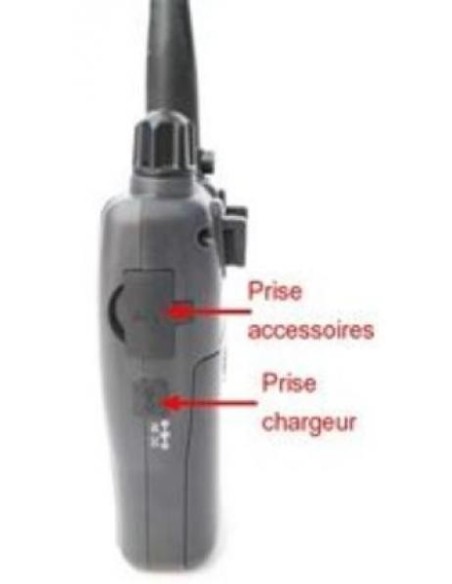

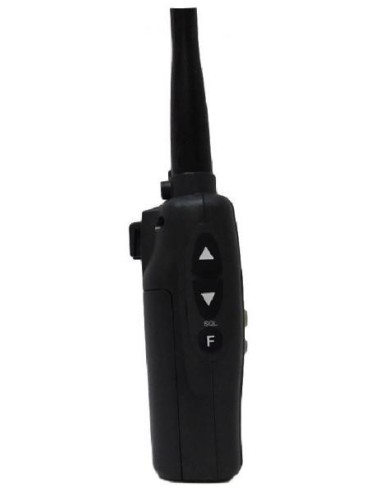

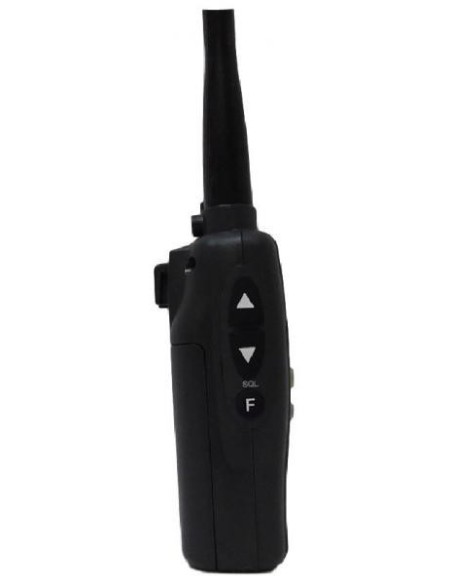

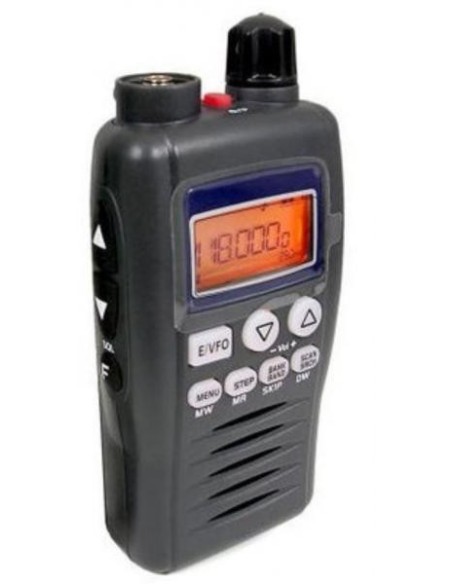

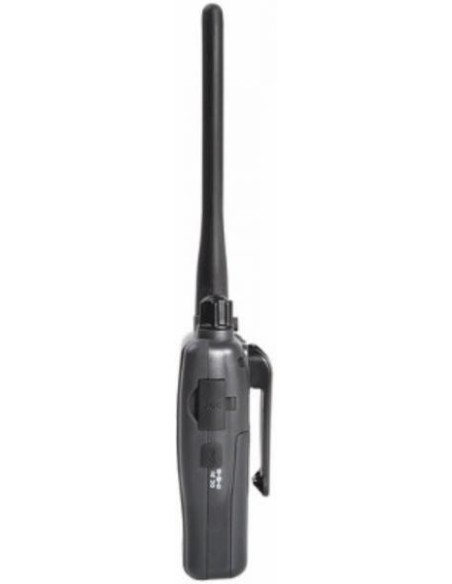

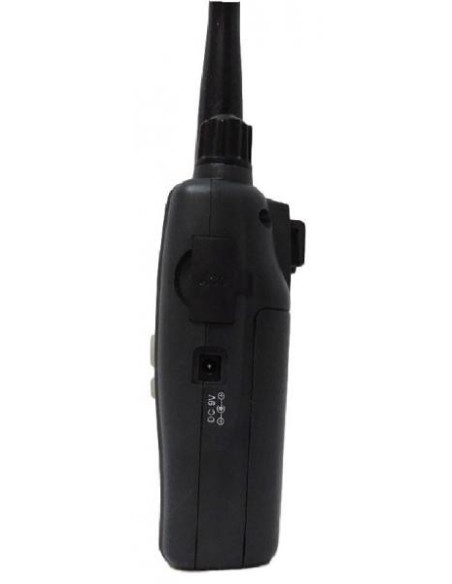

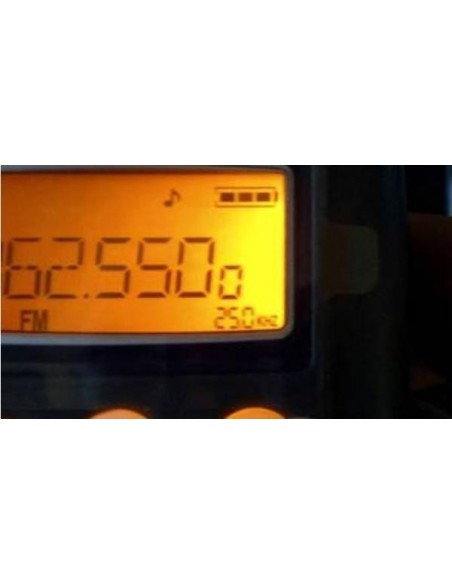

The Scanner covers 66-174 Mhz to include the VHF Air band, VHF High band, VHF Low Band (FM Broadcast) (66-88MHz) and WFM Broadcast band (weather channel only in the US), It features 200 Channels. the display (with battery and S-Meter) and front panel switches ane backlit. The right side has a 9 VDC input and earphone jack. the Left side has a squelch control. the Top panel has a tuning knob and power switch. A flexible SMA antenna is features.

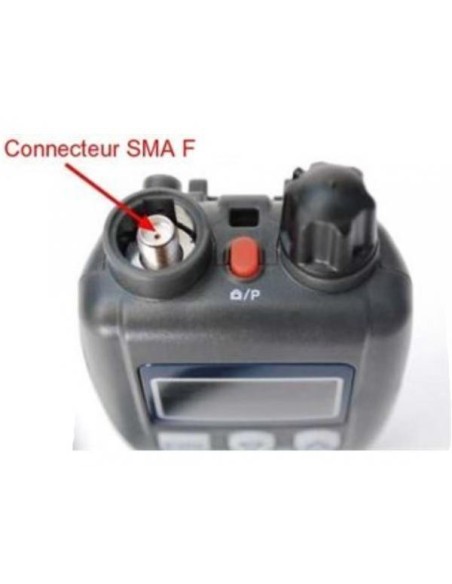

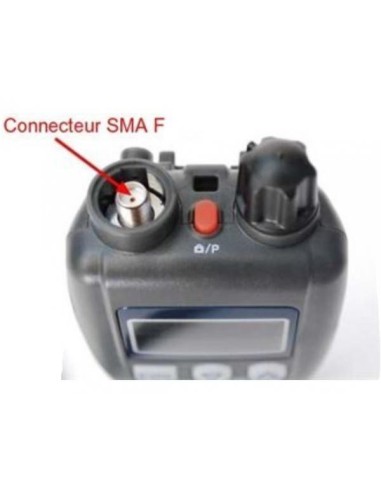

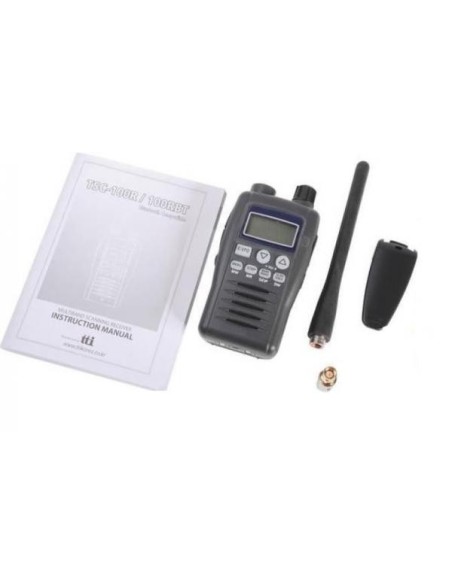

This unit comes with an antenna with SMA Male fitting but also includes a SMA to BNC adaptor to allow for alternative antenna connection, you can find a choice of these antennas on aerodiscount.com website on same general page as the radio.
Sold by Aerodiscount with this option

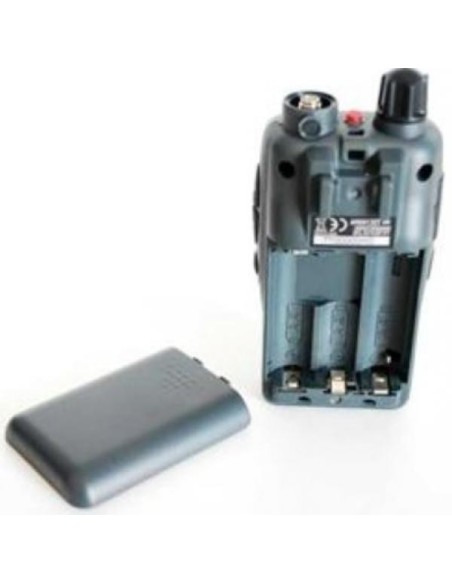

This scanner comes with 3 x AA 1.2V - 1700mAH batteries, with 9V - 500mAH AC adaptor with 3 Pin French european plug.
Please note AA size Ni-MH rechargeable batteries are included along with a charger from factory, so compare the price with all batteries and accessories included.
SPECIAL INFO INFLUENCING WARRANTY
PLEASE DO NOT CHARGE THE SCANNER WHEN ALKALINE BATTERIES ARE INSERTED. EXPLOSION OR BURNING RISKS POSSIBLE ELECTRONIC DETERIORATION AND THIS WILL CANCEL WARRANTY ON THE PRODUCT
This is now the favorite choice for the UAV - drone pilot working close to an airport to listen to the traffic around for the same reason it can be the choice of the aero model club more and more obliged when they are close to an airfield to have minimum a listening traffic device and of course this can also be the handy scanner for the spotter.
Technical Specifications
- 200 Memories
- 10 Banks (Variable Memory)
- Multiple Frequency Steps 5 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 / 500KHz
- Dual Watch
- Squelch Level Adjustment
- Keypad Lock
- Beep Tone
- LCD Backlighting
- Automatic Power Save
- Scan and Search
- External Earphone Jack
- AM and FM Reception
- Band Selection
Specifications:
- Frequency Range: 66-88MHz, 88-108MHz, 108-136MHz, 136-174MHz.
- Frequency Steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 / 500KHz
- Channel Memories: 200 Channel Memories
- Power Source: 9v DC for charging Ni-MH batteries only
- Operating Temperature Range: -10o C to +60o C
- Weight with 3 x AA Batteries NiMh: 120g (please note Ni-MH batteries supplied with unit)
- Antenna Impedance: 50 ohms
- Dimensions: 56 (W) x 116,5 (H) x 48 (D) mm (without antenna)
- Weight 160 g
