CRT FP 00 transceiver UHF/VHF Dual Band (Paragliding)
Dual band: VHF/ UHF 144-146 Mhz (export version extensible frequency: 143,9875 Mhz) CRT FP00 48€ A MINI MINI PRICE A Quality Performance Price, EXCELLENT compared to the competition! The equivalent of a much more expensive hardware with Kenwood connectivity. The cheapest on the market.
CRT FP00 UHF/VHF Dual Band Free flight Paragliding 143.9875 MHZ Transmitter/Receiver
A solid product with a careful manufacturing with a 2 Year WARRANTY in France, and a leaflet in English and in French....
Compliant with CE, ROHS, iso.... standards.
No more reason to buy Chinese clones from foreign or incompetent sites!
when you can buy, in FRANCE and at an affordable price and a quality product that respects all ethical standards.
VHF walkie-talkie UHF144/146 and 430/440 (Export 136-174 and 400-480)
FM Radio Receiver 76-108MHz.
UHF/VHF,UHF/UHF,VHF/VHF,VHF/VHF,VHF/UHF operation.
128 channels/ memories.
Power: 1W/5W VHF, 1W/4W UHF.
Encoder /Decoder CTCSS(50),DCS ( 208).
Alarm function.
Offset offset for repeater.
Group call, PTT-ID/ANI code/DTMF
Vox function (voice activation)
Dual standby function.
Reverse function. Scan function
No frequencies available 2.5/5/6.25/10/12.5/25KHz
Battery saver
TOT function (anti-talk)
Tone burst (1750 Hz)
Cloning function
3-colour display
Flashlight.
Dual frequency and, or channel display of your choice
BCLO function (block occupied channel)
Key lock, key beep.
Supplied with 1600 mAH Li-ion battery, charger
neck strap and hand strap,
belt clip; 21 cm antenna with sma female connector
Micro HP jack connectors type K
Option: Programming cable + software
Dimensions: 122x63x63x36 mm (with battery)
Weight: 260g (with battery)
2 YEAR WARRANTY
CRT FP 00 TALKY WALKY RADIO AMATEUR BIBANDE - BLUE DISPLAY - Free Flight 143,9875Mhz
EFFICIENCY in Transmitting-Receiving at a very low price
Much better quality than its Chinese competitors,
Stable Frequencies, Reception and Clear and Wide Range Emissions.
A real plus for the free flight pilot because the Frequency FFVL 143,9875 is possible at a really competitve price !
CAUTION: THIS DEVICE DOES NOT PICK UP AIRCRAFT FREQUENCIES ONLY FREE FLIGHT (PARAGLIDING, HANG GLIDING, PARAMOTORS...)
Here are some undeniable strengths for FREE FLIGHT:
- Complete VHF UHF band but especially VHF FM 144-146 Mhz with FREE VOLUME frequency 143.9875 Mhz easily initializable.
- ALARM function in case of problem or accident
- CTCSS codes and DCS codes (sub-audio coding to selectively trigger the squelch)
- Dual Display
- PTT / ID (caller ID) Allows you to differentiate each caller by programming a sequence of different tones
- VOX automatic transmission voice-activated VOX function, of course, both hands remain free
- Keyboard lock: Lock of the selected channel, no risk of frequency change without realizing it.
- Possibility to listen to FM radio simultaneously in flight.
- Customization of your aircraft to differentiate it from other aircraft of the same model from your fellow pilots.
- Fast and intelligent charger
- Long battery life Li-Ion 2000 mA
- Double Watch.
- Double jack accessory connector type KENWOOD.
- Very robust ANTICHOC shell.
- Warranty in France 2 years.
- Instructions for use in French and English.

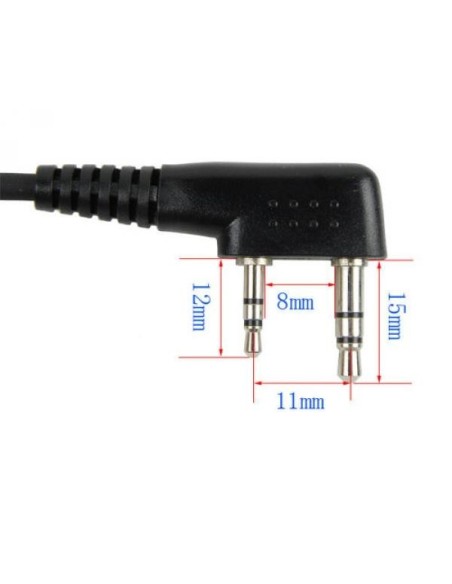

For everything that is headset, micro Hp etc.... the connection is Keenwood type.
The extremely compact and lightweight CRT FP00 is forgotten and replaces more expensive products at an undoubtedly professional level compared to Chinese brand products.
(Be careful when buying in China you think it is cheaper except that it is generally necessary to include transport but also and it is the surprise at the reception the costs of freight forwarder and Customs as well as VAT at 20%)
TECHNICAL SPECIFICATIONS :
Dual band VHF-UHF transceiver
Norm |
RADIO AMATEUR |
Mode |
VHF / UHF |
Frequencies |
RX/TX : 144-146 Mhz / 430-440 Mhz (Exp 136-174 Mhz/400-480 Mhz) |
Power |
VHF : 1W / 5Watts -- UHF : 1W / 4Watts ERP |
Power supply |
7.2V DC ± 20% |
Channels |
128 canaux / mémoires |
Channels spacing |
25 KHz wide band( bande élargie) - 12.5 KHz narrow band( bande étroite) |
No incrementation |
2.5 / 5 / 6.25 / 10 / 12.5 / 25 Khz |
Usage |
UHF-VHF / UHF-UHF / VHF-VHF / VHF-UHF |
TONE BURST |
Yez: tone generally used to open a relay (1750Hz) |
CTCSS / DCS (encoder/décoder) |
50 CTCSS / 208 DCS : subaudio coding to selectively trigger the squelch |
DTMF (encoder) |
Yes: tone coding, to use a relay, internet gateway or other (included in the original package) |
PTT / ID (caller ID) |
Yes: allows you to program a sequence of different tones for each caller |
ANY CODE |
Yes: identification code + selective call coding |
DOUBLE STANDBY function |
Yes: listening to scan two frequencies |
Function VOX |
Yes: this function triggers your microphone to sound (hands-free) |
Function TOT |
yes: anti talker |
Fonction SCAN |
Yes: automatic search for busy channels (scanning) |
Fonction BCLO |
Yes: locking the busy channel |
Fonction REVERSE |
Yes: the TX frequency changes to RX and vice versa |
Fonction ALARME |
Yes: the device will emit a siren sound and transmit this sound on the current channel |
Fonction RADIO FM |
yes: reception radio FM 76-108Mhz |
Fonctions diverses |
Key lock + Key beep + Battery saver + Flashlight + Offset offset for repeater + Cloning function |
Display |
LCD display : blue |
Affichage |
Choice of dual frequency and/or channel display |
Options |
Programming cable + software |
Computer Programmable |
Yes |
Batterie |
Li-ion 1600 mAh |
Connectique |
CRT type K |
Antenna |
20 cm / high gain / connectique SMA-Female |
Delivered with |
Table charger, battery, antenna, 1 neck strap, 1 hand strap and belt clip |
Dimensions |
122 x 63x 36 mm |
Weight |
260 g |
Warranty |
2 years |

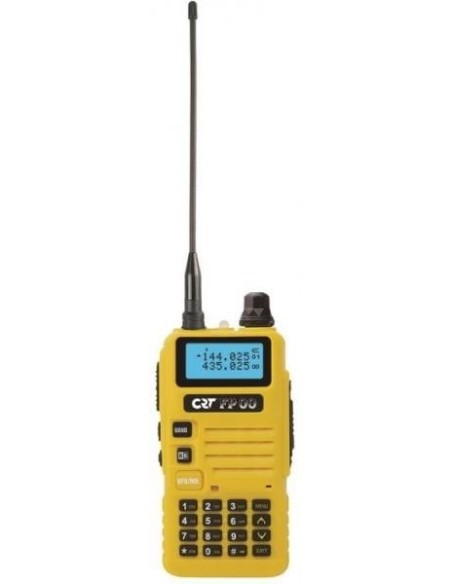

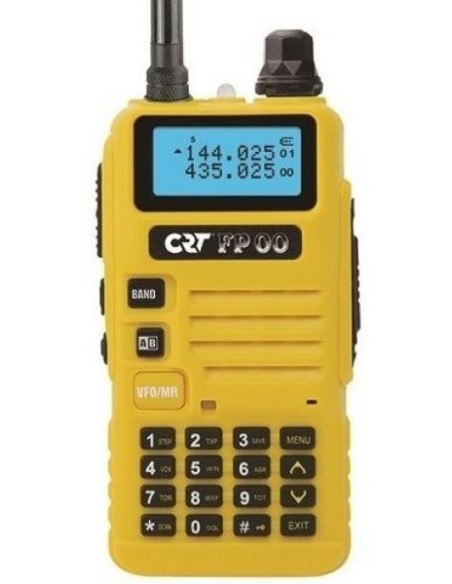

Aérodiscount offers it in Yellow only. Indeed because of its size, if you drop it on the ground or in flight in black it is very difficult to spot it by eye. The yellow colour makes it easier to find it.
Possibility of programming with a PC (option: software cable on request)
To obtain the free flight frequency with this device, when purchasing also order this product.
Click on the image to access the order page.

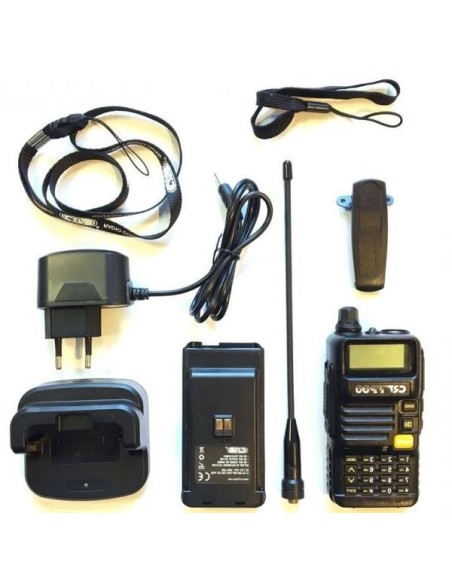

Included in the box:
- 1 transceiver
- 1 fast desktop charger with its AC adapter
- 1 batteries 2000mAh Li-Ion Li-Ion
- 1 belt clip, strap
- 1 user manual in French
*manufacturer/importer data
This product requires a delivery of 4 to 5 days.
This Radio is CE approved
Warning!
If you use a radio that is not CE approved, your responsibility may be
be engaged in a club or professional use.
Be vigilant.
IMPORTANT NOTE: The use of this Transmitter / Receiver must be carried out in accordance with the aviation legislation and regulations in force in the country of use.
In France: The pilot or the person using such a transceiver must hold a certificate of radiotelephone operator (or radiotelegrapher)
(for general aviation pilots this certificate is usually issued at the same time as the licence).
This certificate, which is attested by a user licence card, is issued after an examination at the ANFR (Agence Nationale des Fréquences). The holder is also assigned a call sign issued by the same administration. (cost about 80€)
We cannot be held responsible for any breach of this legislation by the user, in particular due to lack of information.
Reminder and Reference to the legislation:
The free flight frequency 143.9875 was specifically allocated by the public authorities.
It is official and should only be used for the security of pilots
It was the subject of the D.R.G. (Directorate of General Regulations) of a circular SP/DRG/R.RS/1 of July 1992, named "Radio equipment transmitting only speech on the frequency 143.9875 MHz exclusively reserved for the practice of free flight - approval specification".
In particular, it specifies:
→ ch.1.2 : "the equipment used is exclusively portable".
→ ch.1.6 : "Radio equipment is subject to individual licensing and may not be
used only by a holder of a free flight pilot's licence".
→ ch.2.1 : "frequency 1
